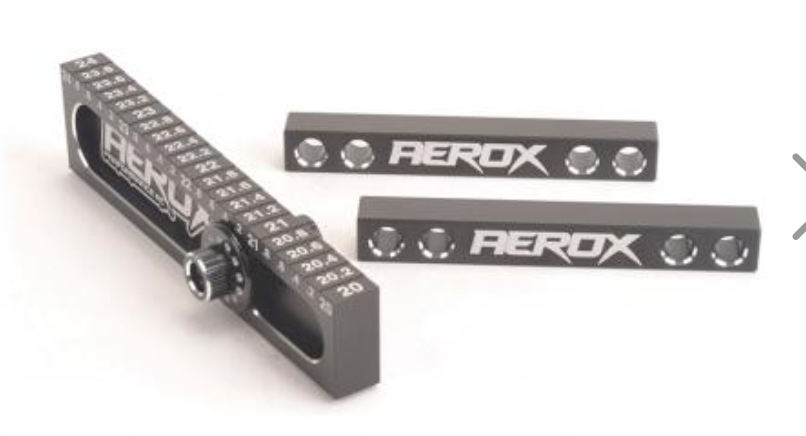

AX013 Aerox TC Droop Gauge Set

The Aerox TC Droop Gauge Set (SCH-AX013) provides a universal, repeatable way to measure suspension droop on 1/10 touring cars by referencing the axle centre. Measuring to the axle centre helps remove discrepancies from suspension geometry, making it easier to compare setups across different chassis manufacturers and quickly tune handling.

How It Works

• Fasten the droop wheels to one pair of axles.
• Place the chassis on 10 mm droop blocks.
• Use the droop gauge to measure to the lowest point of the droop wheel; the reading is the distance from the chassis underside to the axle centre.
• Repeat for the other pair of axles.

Recommended Starting Points

• Tarmac/Asphalt
  • Front: 22–23 mm
  • Rear: 21–22 mm
• Carpet
  • Front: 22.5–23.5 mm
  • Rear: 21.5–22.5 mm

Storage And Transport

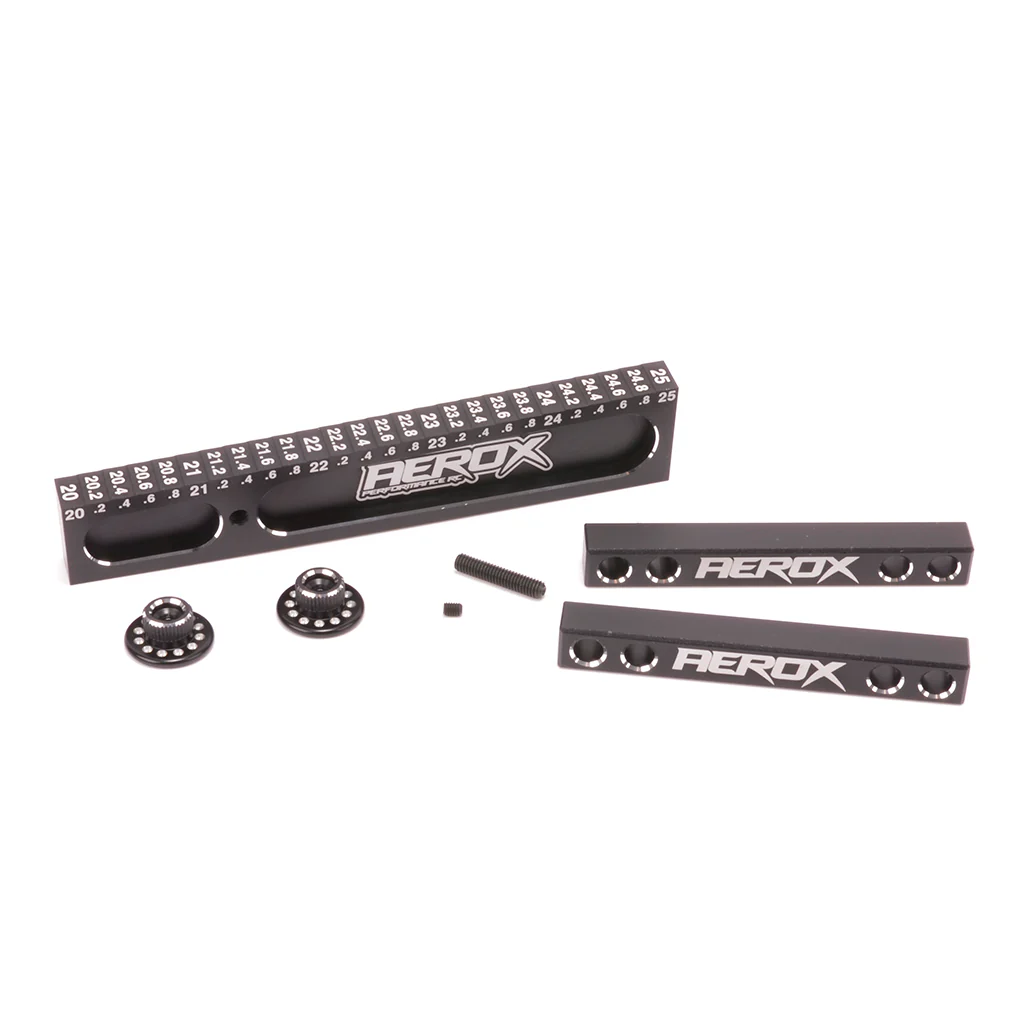

For compact storage, an M4 grub screw passes through the gauge body and is locked with an M3 grub screw from underneath. The droop wheels attach to the M4 screw so the parts stay together safely between runs.

Suggested Compatibility

Designed for use with most 1/10 touring car chassis across different manufacturers.
