AX062 AEROX HD Alloy Servo Arm - Short

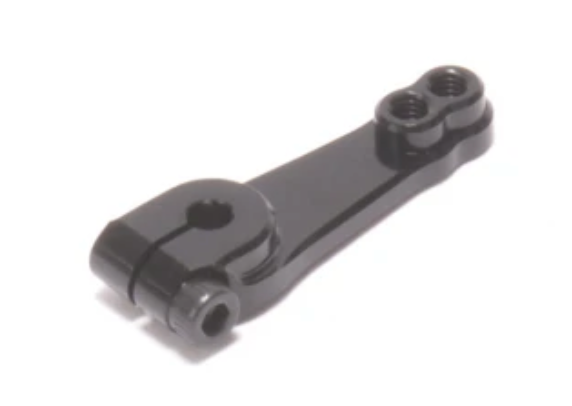

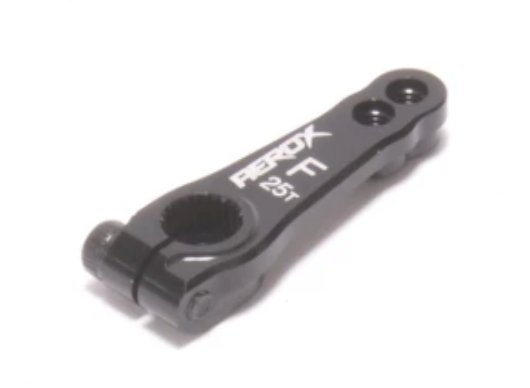

The Aerox AEROX HD Alloy Servo Arm - Short 25T Futaba (SCH-AX062) is a heavy-duty clamping servo arm precision-made from 7075-T6 alloy. It uses a standard shape with mounting holes positioned at 18 mm and 21 mm from the centre of the spline, plus a 3 mm offset with a forward facing ball. Finished in black and secured by a high tensile steel clamping screw, it provides a robust, reliable setup.

Features

• Super strong 7075-T6 alloy construction
• Clamping design with high tensile steel screw
• Upgraded 3 mm clamping screw with 2 mm hex (improved from 2.5 mm on AX009)
• Standard shape with holes at 18 mm and 21 mm from spline centre
• 3 mm offset with forward facing ball
• 25T (Futaba) spline
• Black finish
