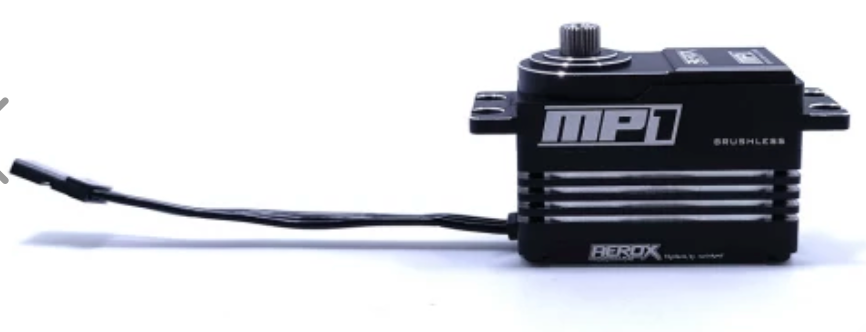

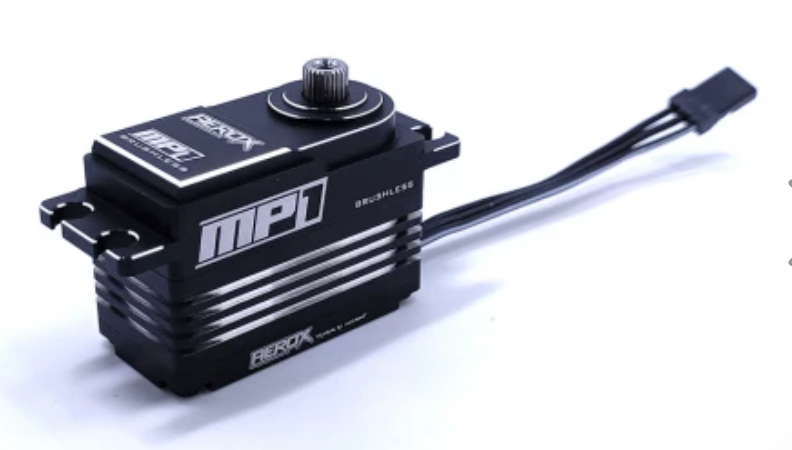

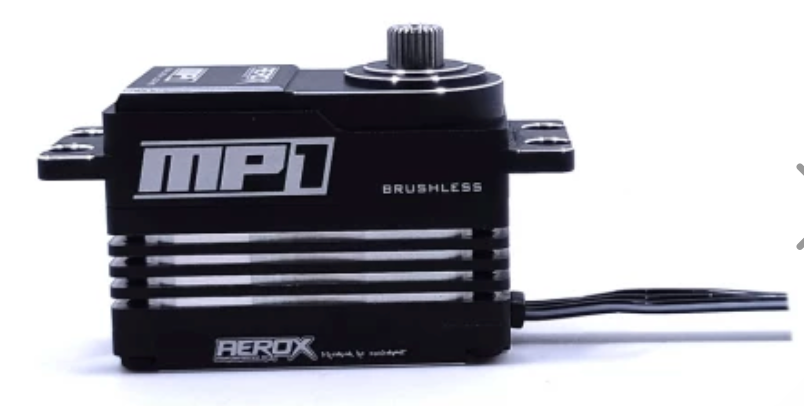

AX066 AEROX MP1 1/10th Brushless Servo

The Aerox MP1 1:10 Brushless Servo (SCH-AX066) is engineered for high-level competition, delivering outstanding speed, torque and durability for modern 1/10 off-road buggies. Built around a robust full metal case and a 4‑pole brushless motor, it combines rapid response with excellent heat resistance and long service life. A titanium and steel geartrain, dual ball bearings and a precise 25T spline round out a servo designed to perform at the highest level, tested and approved by Schumacher engineers and team drivers.

Key Features

• 4‑pole brushless motor for higher performance, longer life, greater heat resistance and faster response
• Full metal case for strength, rigidity and thermal stability
• Titanium and steel gears with dual ball bearings for smooth, durable operation
• High-voltage capable: 6.0–8.4V DC operating range
• 25T output spline

Supported Radio Modes

• SANWA: NOR / SHR / SSR / SUR / SXR
• Futaba: NOR / SR / UR
• Flysky Noble NB4: NOR / SR / SFR

Specifications

• Torque (6.0V): 20.0 kg‑cm (277.7 oz‑in)
• Torque (7.4V): 26.0 kg‑cm (361.1 oz‑in)
• Torque (8.4V): 30.0 kg‑cm (416.6 oz‑in)
• Speed (6.0V): 0.083 s
• Speed (7.4V): 0.067 s
• Speed (8.4V): 0.055 s
• Operating voltage: 6.0–8.4V DC
• Weight: 63 g (2.22 oz)
• Bearing type: Ball bearing ×2
• Motor type: Brushless
• Gear type: 7075 + Steel
• Operating temperature: −20°C to 60°C
• Working frequency: 1520 μs / 1666 Hz
• Size: 41.0 × 20.0 × 29.0 mm

Suggested Compatibility

• Primarily intended for 1/10 off-road buggies
• Can be used in many vehicle types that accept a mid-size 25T servo (41.0 × 20.0 × 29.0 mm)
