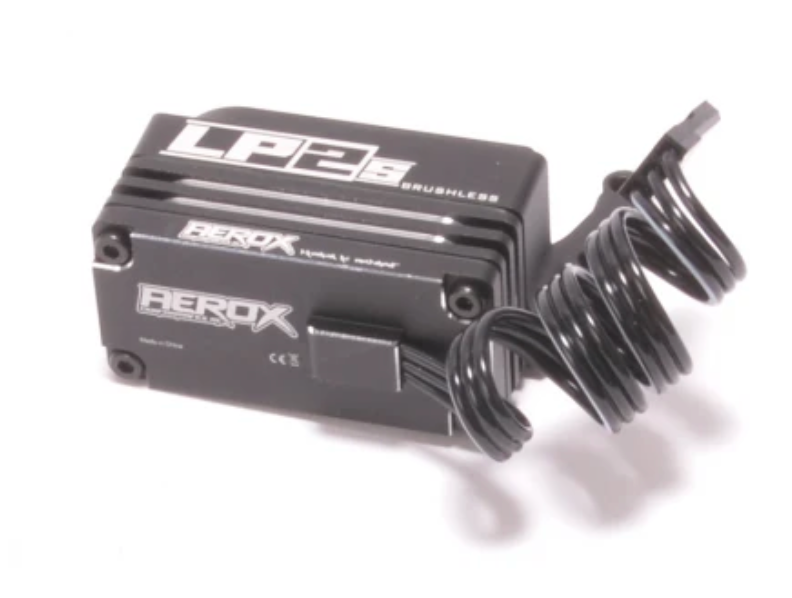

AX105 AEROX LP2S Brushless Servo - FT9 180mm

The Aerox LP2s Brushless Servo brings competition-grade performance to 1/10 on-road builds in a super low-profile 23mm case and just 47g. Built around a 4‑pole brushless motor with a full metal case, titanium output shaft and titanium/steel gear train, it delivers rapid response and strong holding power with modern radio compatibility. Designed with a bottom-exit lead for tidy routing, it offers a clean, weight-conscious installation. Suggested compatibility: Schumacher FT9 (direct-mount style).

Overview

Optimised for high-level racing, the LP2s refines speed, torque and durability while keeping a compact footprint. The titanium output shaft increases hardness and toughness, and support for high-speed radio modes plus FlySky i‑BUS2 enables remote parameter setup and temperature sensing on the FlySky NB4+ Pro.

Performance Specifications

• Motor: 4‑pole brushless
• Profile/Height: 23mm low profile
• Weight: 47.0g
• Operating voltage: 6.0–8.4V DC
• Torque (6.0V): 15.0 kg‑cm (208.3 oz‑in)
• Torque (7.4V): 18.0 kg‑cm (250.0 oz‑in)
• Torque (8.4V): 23.0 kg‑cm (319.4 oz‑in)
• Speed (6.0V): 0.080s
• Speed (7.4V): 0.073s
• Speed (8.4V): 0.065s

Build And Connectivity

• Case: Full metal for rigidity and heat dissipation
• Gears: Titanium and steel for strength and longevity
• Output shaft: Titanium, enhanced hardness and toughness
• Lead exit: Bottom of case for easier receiver placement
• Radio support: High-speed modes of major radios; FlySky i‑BUS2 with remote parameter setup and temperature sensing on NB4+ Pro

Ideal Use

Suited to modern 1/10 touring cars where fast transit times and precise centring are critical. The direct-mount style can offer a cleaner, lighter installation in relevant chassis. Suggested compatibility: Schumacher FT9.

Part number: SCH‑AX105 – Aerox LP2s Brushless Servo – FT9 180mm.
