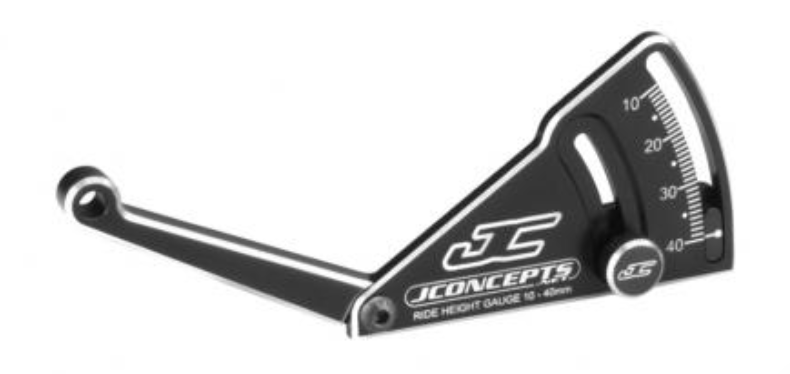

JC2282-2 JConcepts Aluminum Ride Height Gauge, 10-40mm-Black

For precise 1/10 off-road setup, the JConcepts Aluminium Ride Height Gauge 10–40mm (Black), part number SCH-JC2282-2, delivers accurate, repeatable measurements. It is precision machined from billet aluminium, finished in black anodising with chamfered silver edging, and uses a rounded contact boss to meet the chassis at the correct angle. The laser-etched scale spans 10–40 mm and the gauge arrives pre-assembled with 4 mm pivot hardware plus 3 mm setscrew and thumbscrew.

Each gauge is supplied in a protective latch box with a foam insert for secure storage and transport.

Key Features

• Pre-assembled, lightweight, aluminium construction
• Available in blue or black anodising
• Laser etched graduated measurements
• Rounded boss as a touch-off point
• Chamfer-highlighted edging
• Included latch box with foam cushion

How It Works

Place the base on a flat setup board, swing the pivoting arm to touch the underside of the chassis, then lock the thumbscrew and read the etched marking. To set ride height, dial the thumbscrew to the preferred value and adjust your shock collars until the suspension meets the gauge; many racers leave a very small clearance for a final check.
