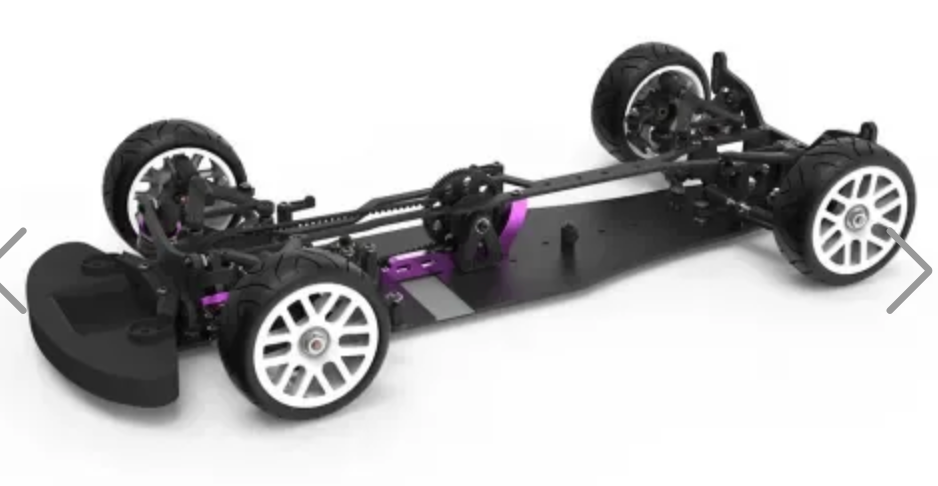

K206 Schumacher Vibe FT 1/10 FWD Touring Chassis - Kit

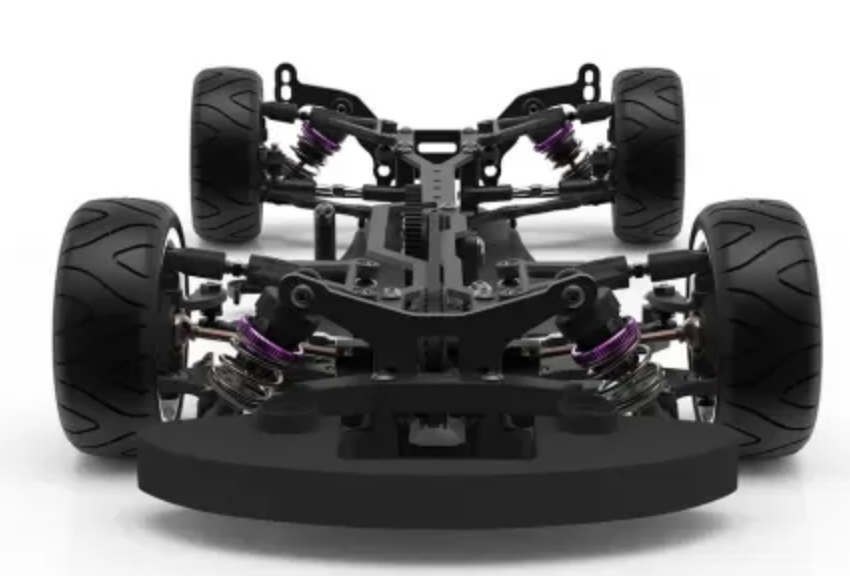

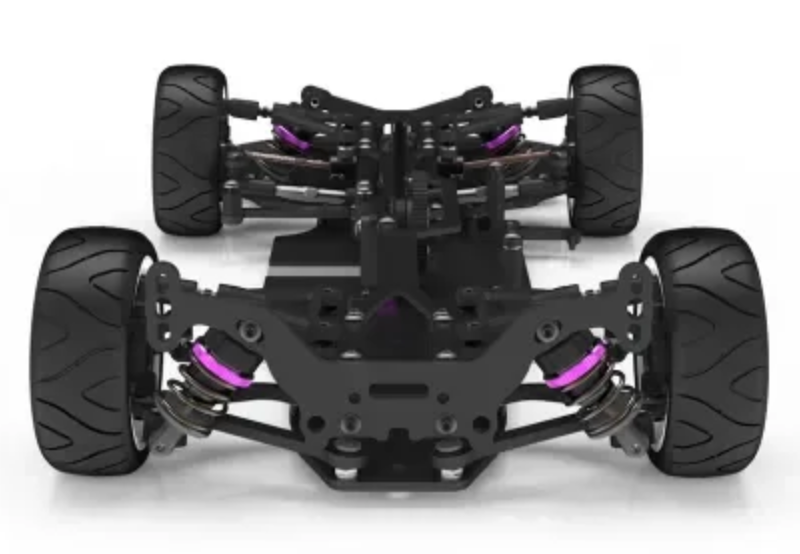

The Schumacher Vibe FT is a competitive 1/10 scale front wheel drive touring racing chassis created for dedicated club racers. Its modern layout provides a broad tuning window and the adjustability you’d expect from top-tier race platforms, while remaining approachable and easy to maintain. Built for durability and consistency, the Vibe FT includes alloy shocks with purple anodised adjusters, UJ driveshafts, purple alloy transmission components, and a strong yet flexible S2 chassis and top deck for confident handling on a wide range of track surfaces. Part number SCH-K206.

Key Features

• Double wishbone suspension design, refined for performance across varying track conditions.
• Lightweight, stiff upper and lower wishbones with upper adjustable wishbone for fine camber tuning.
• Proven gear differential with steel outputs and a new O-ring for leak-free operation.
• Moulded transmission housing that is lightweight and robust.
• Ultra hard-wearing steel front driveshaft.
• Short shocks with alloy bodies, machined pistons, low-friction shafts, and a lightweight moulded upper socket.
• Front bumper designed with space for ESC or weights to optimise weight distribution.
• Steering arms engineered for optimal Ackermann.
• Lightweight and durable layshaft assembly, plus a lightweight motor mount design.
• Lightweight moulded wheel hexes.
• Floating servo mount with upright servo placement for a low centre of gravity and balanced weight distribution.
• Simple, lightweight lower shock mounts and twist-free front and rear shock mount designs.
• Diff eccentrics for easy belt tension adjustment and selectable diff height.
• Horizontal body posts for a lower centre of gravity.
• Adjustable battery mounting to balance the car for any condition.
• High quality Bando 106T belts for a flexible, efficient and durable drivetrain.
• Steering radius arm assembly with updated geometry for maximum steering with smooth characteristics.
• Hub carrier design for precise wheel control and performance.
• Optional anti-roll bars.
• Rear track rods allow infinite rear toe-in adjustment, including tuning for passive rear steering/toe change.
• Arrowmax 48dp 72T spur gear included in the kit.
• Fully ball-raced transmission.
• Standard-fit components include UJ driveshafts and purple alloy transmission parts, plus the S2 chassis and top deck for consistent handling.

Required to Complete

• 2 Channel Radio
• Motor
• Servo (Low Profile)
• Electric Speed Control
• Wheels & Tyres
• 2S Shorty Lipo
• Battery
• Bodyshell
• Motor Pinion - 48dp
