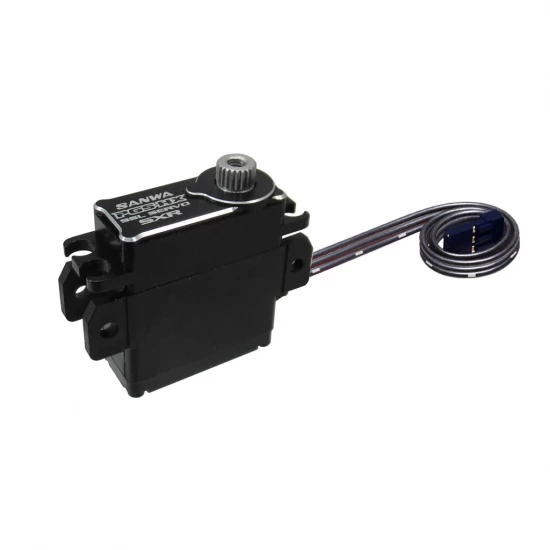

SA107A54763A Sanwa PGS-HX Servo

The Sanwa PGS-HX 1:12 Servo delivers high operating accuracy and case rigidity for 1/12 scale racing. Based on the PGS-HR programmable servo, it features an upper case made from machined aluminium and reinforced full metal gears. It is SXR/SSL capable and works with Sanwa’s Multi Setting Gear, offering factory USER data plus three fixed preset profiles. Listed as part number SCH-SA107A54763A.

Suggested compatibility includes CODE10 Sanwa transmitters such as M17, MT-5, MT-R, M12S(RS), EXZES ZZ and MT-44; it is not suggested for CODE 5 systems including M12, EXZES Z, MT-4S, MT-4 and MT-S. A new control system achieves up to 10× the operating response compared with SRG-HR/HS, and supports SXR, SUR, SSR and SHR modes.

Features

• Designed for 1/12 scale
• Upper case made from machined aluminium
• Full metal gear specification (reinforced type)
• MULTI SETTING GEAR compatible; USER data plus three fixed presets (types 1–3)
• Compatible modes: SXR, SUR, SSR, SHR
• Voltage: 3.7–6.0 V
• Dimensions: 27.0 x 12.1 x 30.5 mm
• Weight: 23 g
• Speed: 0.10 sec/60° (6.0V); 0.16 sec/60° (3.7V)
• Torque: 5.8 kg·cm (6.0V); 3.8 kg·cm (3.7V)
• Suggested compatibility: CODE10 radios (e.g. M17, MT-5, MT-R, M12S(RS), EXZES ZZ, MT-44); not suggested for CODE 5
