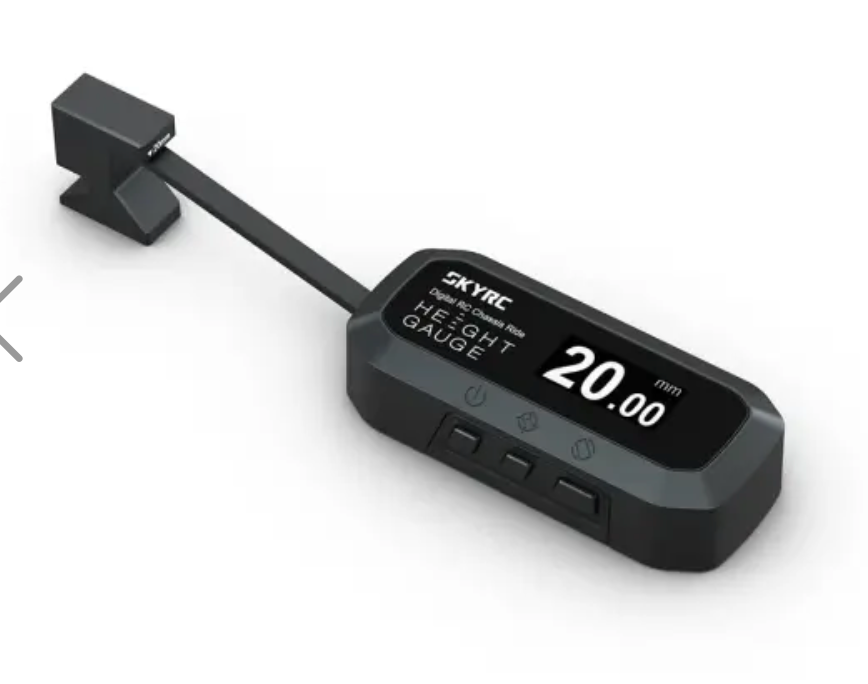

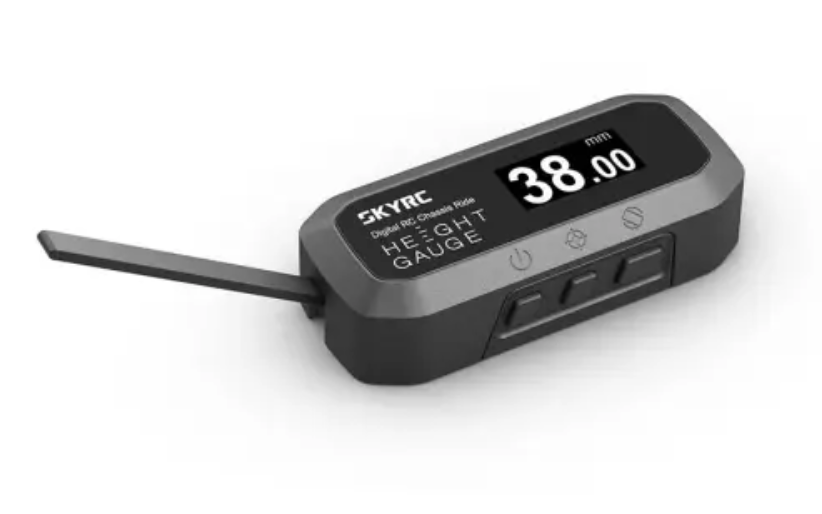

SK-500049 SKY RC Digital Ride Height Gauge 2-38mm

The SkyRC Digital Ride Height Gauge (SCH-SK-500049) turns setup guesswork into precise, repeatable numbers. Covering 2–38 mm with 0.1 mm resolution, it provides fast, stable readings so every millimetre of adjustment translates into meaningful on-track improvements.

Why Ride Height Matters

Ride height influences centre of gravity, corner balance and overall grip. Consistent measurement makes small changes intentional and helps you return to a reliable baseline after tyre, spring or shock oil changes—whether you’re setting up on the bench or making quick tweaks at the track.

Key Features

• Range: 2–38 mm with a clear digital readout (mm/in)
• Accuracy: ±0.3 mm (2–20 mm); ±0.5 mm (>20 mm)
• 0.1 mm precision via onboard MCU and proprietary measurement algorithm
• 2 mm flat measuring blade reaches tight or recessed areas and resists flex
• Unit switching and 180° display rotation for easy viewing from any angle
• Guided multi-point calibration at 2, 10 and 20 mm using the included block
• Suggested compatibility: 1/24, 1/14, 1/12, 1/10 and 1/8 RC models
• Protective storage case organises and safeguards the gauge and accessories

Specifications

• Size: 127.3 x 33 x 18 mm; Weight: about 40 g
• Power input: 1 x AAA battery
• Auto power-off: 300 seconds
• Operating temperature: -5°C to 60°C; Working humidity: ≤85% RH (non-condensing)
• Storage temperature: 0°C to 35°C; Storage humidity: ≤65% RH (non-condensing)

What’s Included

• SkyRC Digital Ride Height Gauge (SCH-SK-500049)
• Calibration block (for guided multi-point calibration)
• Protective storage case
