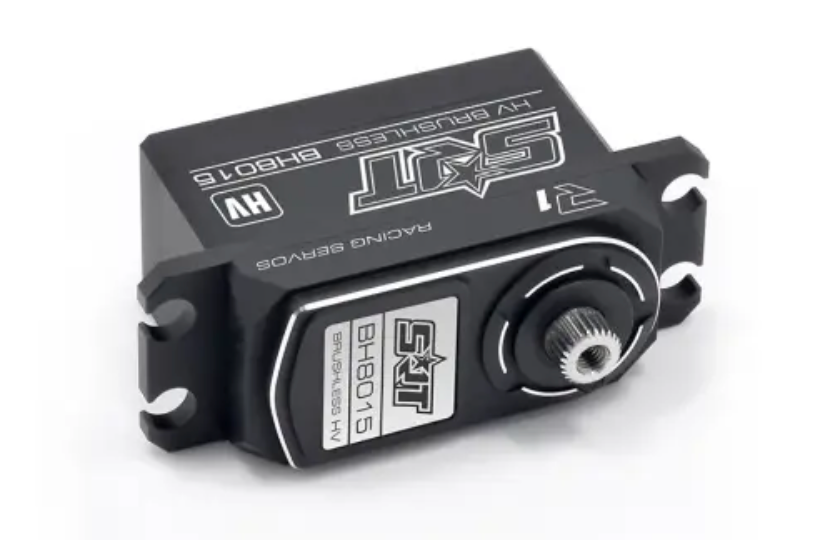

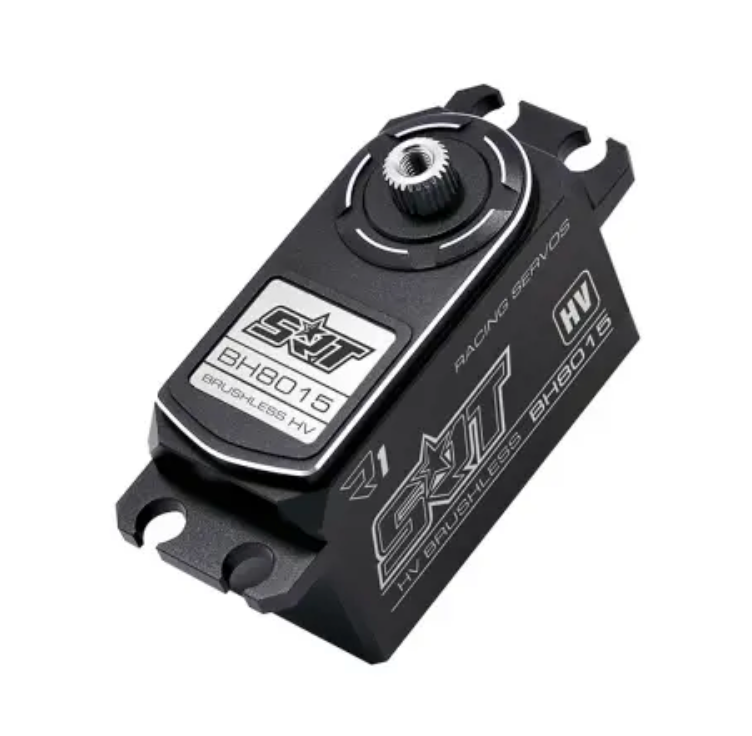

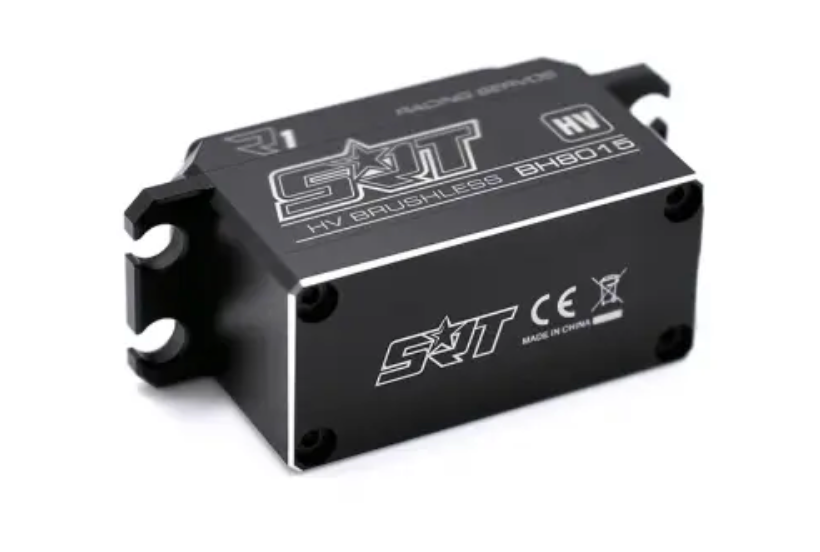

SRTBH8015 SRT 1/10th On-Road HV Brushless Servo

The SRT 1:10 On-Road HV Brushless Servo (SCH-SRTBH8015) pairs rapid transit times with strong holding power in a compact, standard-size footprint. Built for competitive 1/10 scale platforms, it combines high-resolution HD 4096 control with a CNC-machined aluminium case to enhance cooling and consistency during demanding runs.

Driven by a brushless motor and supported by dual bearings, this digital servo uses titanium and aluminium metal gears for durability and precision. A tight 2 μs dead band sharpens steering accuracy, while efficiency-focused electronics ensure low power consumption across a wide high-voltage operating range.

Key Features

• Unique mechanical design
• Incredible efficiency with low power consumption
• Standard dimensions suit vehicles needing a high-quality servo
• CNC-machined aluminium case for exceptional cooling
• HD 4096 resolution digital control
• 2 μs dead band for precise response
• Superior holding torque
• 1-year limited warranty

Specifications

• Type: Digital
• Motor: Brushless
• Bearing: Dual
• Gears: Metal (titanium & aluminium)
• Control system: Pulse width control
• Signal/frequency: 1520 μs / 330 Hz
• Operating voltage: DC 6.0–8.4 V
• Operating temperature range: -10 to +60 degrees
• Speed: 0.065 sec/60° (6.0 V); 0.055 sec/60° (7.4 V); 0.050 sec/60° (8.4 V)
• Stall torque: 10.0 kg·cm (6.0 V); 13.0 kg·cm (7.4 V); 15.0 kg·cm (8.4 V)
• Potentiometer drive: Direct drive

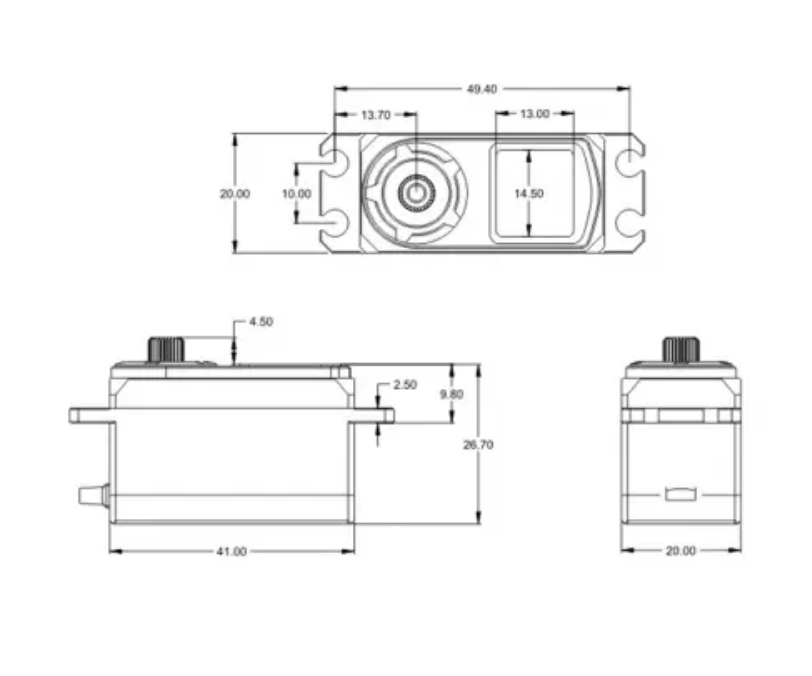

• Dimensions: 41.0 x 20.0 x 26.4 mm
• Weight: 52.0 g
• Connector lead: JR, 180 mm

Suggested Compatibility

• 1/10 Electric Touring
• 1/10 2WD Electric Buggy
• Formula One
